TK-1000 Tandem
All-O-Matic offers tandem gate kits for driveways with limited rear space. The TK-1000 can operate (2) gate panels weighing up to 700 lbs. each. For heavier gates, the TK-2000 kit uses 50NP chain and can operate (2) gate panels up to 1,000 lbs. each.
Downloads
Brochure
Manual
SHARE
The TK-1000 Tandem Gate Kit is now available for orders.
For more information contact us or your local distributor.

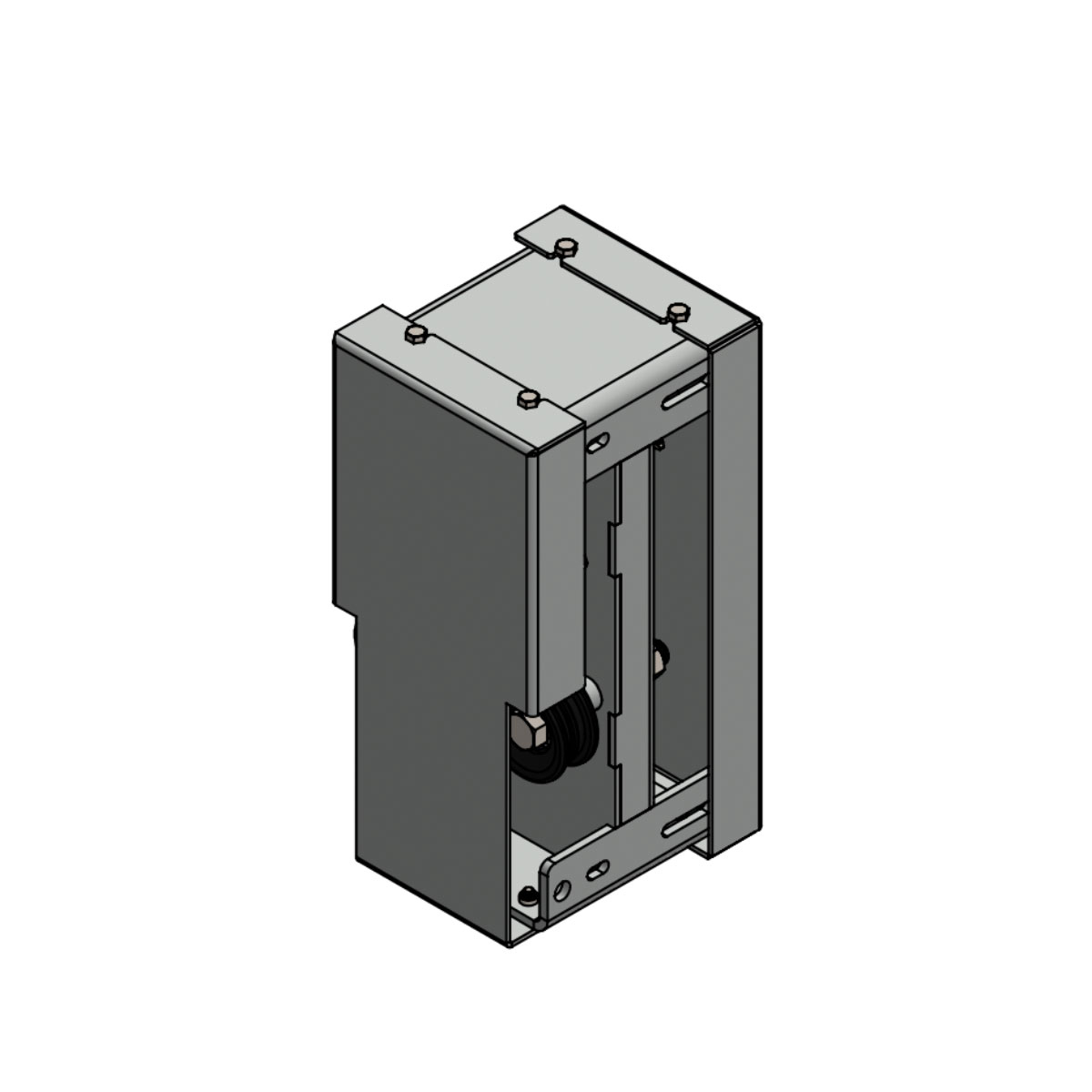

Blowout Drawings
TK-1000 Tandem
Part Numbers
TK-1000 Tandem
| LINE ITEM | PART NUMBER | PART NAME |
|---|---|---|
| 1 | TKF-100 | TANDEM KIT MAIN FRAME ONLY |
| 2 | TKC-101 | TANDEM KIT FRAME LONG COVER |
| 3 | TN-633 | TANDEM KIT FRAME LONG COVER BOLTS |
| 4 | TKC-102 | TANDEM KIT SMALL COVER W/PEN NUTS |
| 5 | TN-546 | TANDEM KIT SMALL COVER SCREWS |
| 6 | TKS-103 | TANDEM KIT SHAFT |
| 7 | BRG-20720 | TANDEM KIT SHAFT BEARINGS |
| 8 | TN-631 | TANDEM KIT BEARING BOLTS |
| 9 | TN-632 | TANDEM KIT BEARING NUTS |
| 10 | 41B30X1 | TANDEM KIT SPROCKET ( BIG ) |
| 11 | 41B15X1 | TANDEM KIT SPROCKET ( SMALL ) |
| 12 | 41B17 | TANDEM KIT METAL IDLERS |
| 13 | TN-580 | TANDEM KIT METAL IDLER BOLT |
| 14 | TN-508 | TANDEM KIT METAL IDLER NUT |
| 15 | TKB-104 | TANDEM KIT METAL IDLER SPACE BAR |
| 16 | IK-3 | IDLER KIT BOX |
| 17 | COM-1017 | PLASTIC IDLER |
| 18 | TN-641 | TANDEM KIT PLASTIC IDLER BOX BOLT |
| 19 | TN-640 | TANDEM KIT PLASTIC IDLER LOCK WASHER |
| 20 | BSG-700 | TANDEM KIT PLASTIC IDLER BOX BUSHING |
| 21 | GRB-6 | TANDEM KIT GUIDE ROLLERS |
| 22 | TKG-6B | TANDEM KIT GUIDE ROLLERS BRACKET |
| 23 | TN-643 | TANDEM KIT GUIDE ROLLERS BOLTS |
| 24 | TN-507 | TANDEM KIT GUIDE ROLLERS NUT |
| 25 | TN-528 | TANDEM KIT GUIDE ROLLERS WASHER |
| 26 | TN-512 | TANDEM KIT GUIDE ROLLER NYLON NUT |
| 27 | TKB-105 | TANDEM KIT CHAIN BRACKET |
| 28 | TN-548 | TANDEM KIT CHAIN BRACKET SCREW |
| 29 | TN-587 | TANDEM KIT CHAIN BRACKET NUT |
| 30 | TKU-106 | TANDEM KIT CHAIN BRACKET U BOLTS |
| 31 | TN-524 | TANDEM KIT CHAIN BRACKET U BOLTS WASHER |
| 32 | COM-1010 | TANDEM KIT CHAIN BOLT ASSEMBLY |
